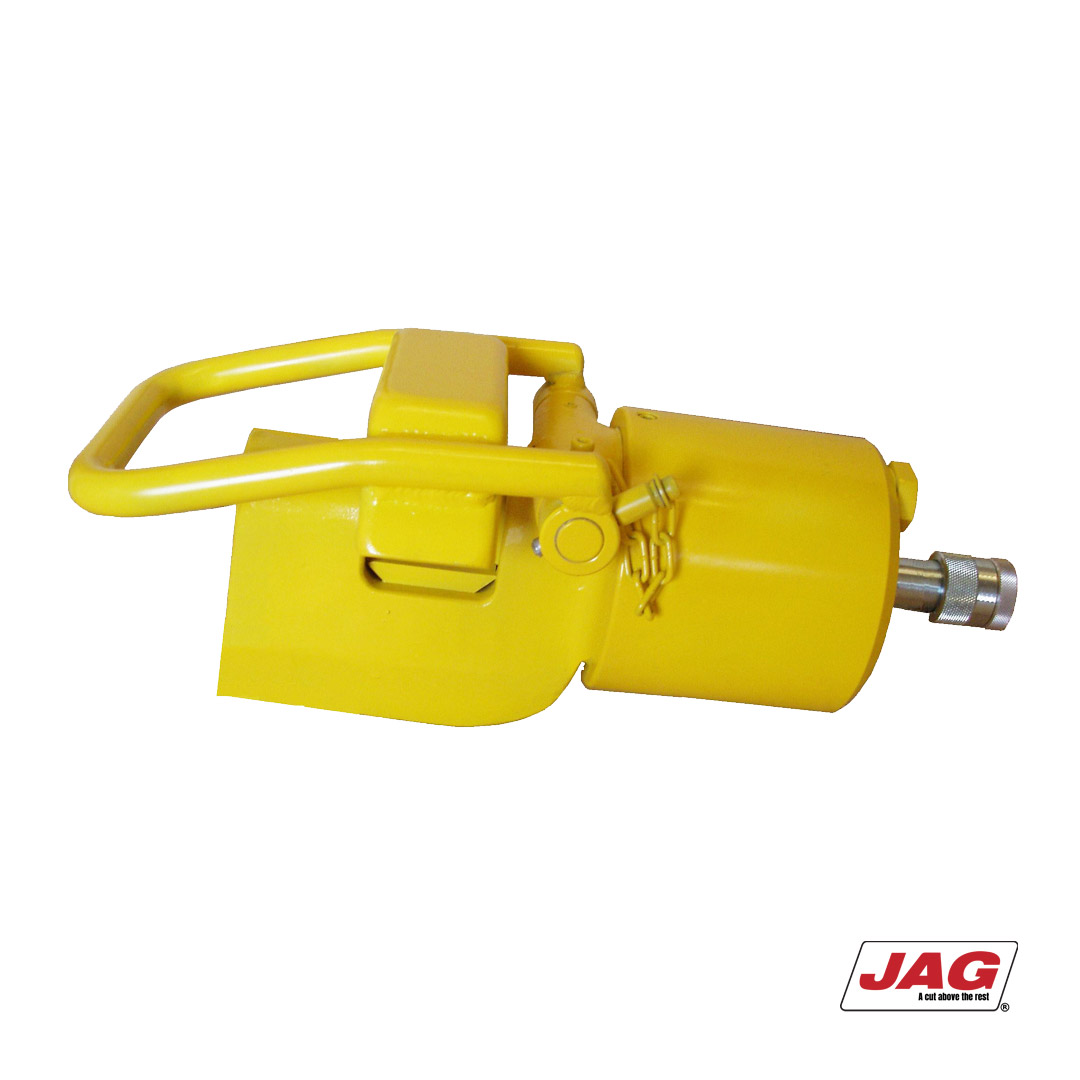

JAG HCH Series chain cutters
JAG HCH Series Hydraulic Cutter Heads are designed as compact cutters for close up precision cutting operations with single acting cylinders for simple operation. The straight edged double-bladed cutting system helps to maximise the power to weight ratio for cutting chains, this model can also cut wire and rebars.
The cutting equipment is designed with a built in 4:1 safety factor and a maximum working pressure of 10,000 PSI.
They are manufactured, inspected and tested in accordance with the relevant requirements of the recognised technical standards: EN – ISO – Hydraulic fluid power for safety requirements of systems / components. EN – ISO – Safety of machinery for design/risk assessment/risk reduction and are certified accordingly. They conform with the relevant essential health and safety requirements as laid down in the machinery directive, pressure equipment directive and are CE marked accordingly.
The cutting equipment has a proven track record within:
- Manufacturing / Mining / Recycling / Construction and Demolition
- Offshore Sub-sea Engineering / Oil /Gas production, exploration and decommissioning
JAG HCH Series Hydraulic Cutter Heads are high performance, reliable and robust production equipment, and offer a no nonsense ready to operate production package when combined with the auxiliary equipment solutions from leading brands such as Holmatro, Enerpac, Hydac, Tuf and Hi-Force to give the ultimate cutting package.
JAG HCH Series chain cutters - Specification
- Smooth guillotine action reduces risk of jamming
- Minimum operator effort when using powered pump
- Lightweight tools permit use anywhere
- Operator guarding
- Safe and easy to operate
- All models cut a wide variety of materials
- No set up time required
- All models fitted with high flow couplers
- Easily replaceable blades
- Single acting operation
- Manufactured in UK
|Model||Output (tons)||Weight (kgs)||Dims (mm)|
|JAG HCH 15||15||10||L=235 W=95 H=100|
|JAG HCH 25||25||16||L=235 W=110 H=120|
|JAG HCH 70||70||23||L=440 W=180 H=180|
|JAG HCH 100||100||40||L=460 W=410 H=250|
|JAG HCH 140||140||72||L=635 W=565 H=345|
|Model||Maximum chain cutting capacity (mm) All chain grade|
|JAG HCH 15||15|
|JAG HCH 20||25|
|JAG HCH 70||26|
|JAG HCH 100||34|
|JAG HCH 140||50|
