Structural section cutters

Hydraulic structural section cutters built for industry

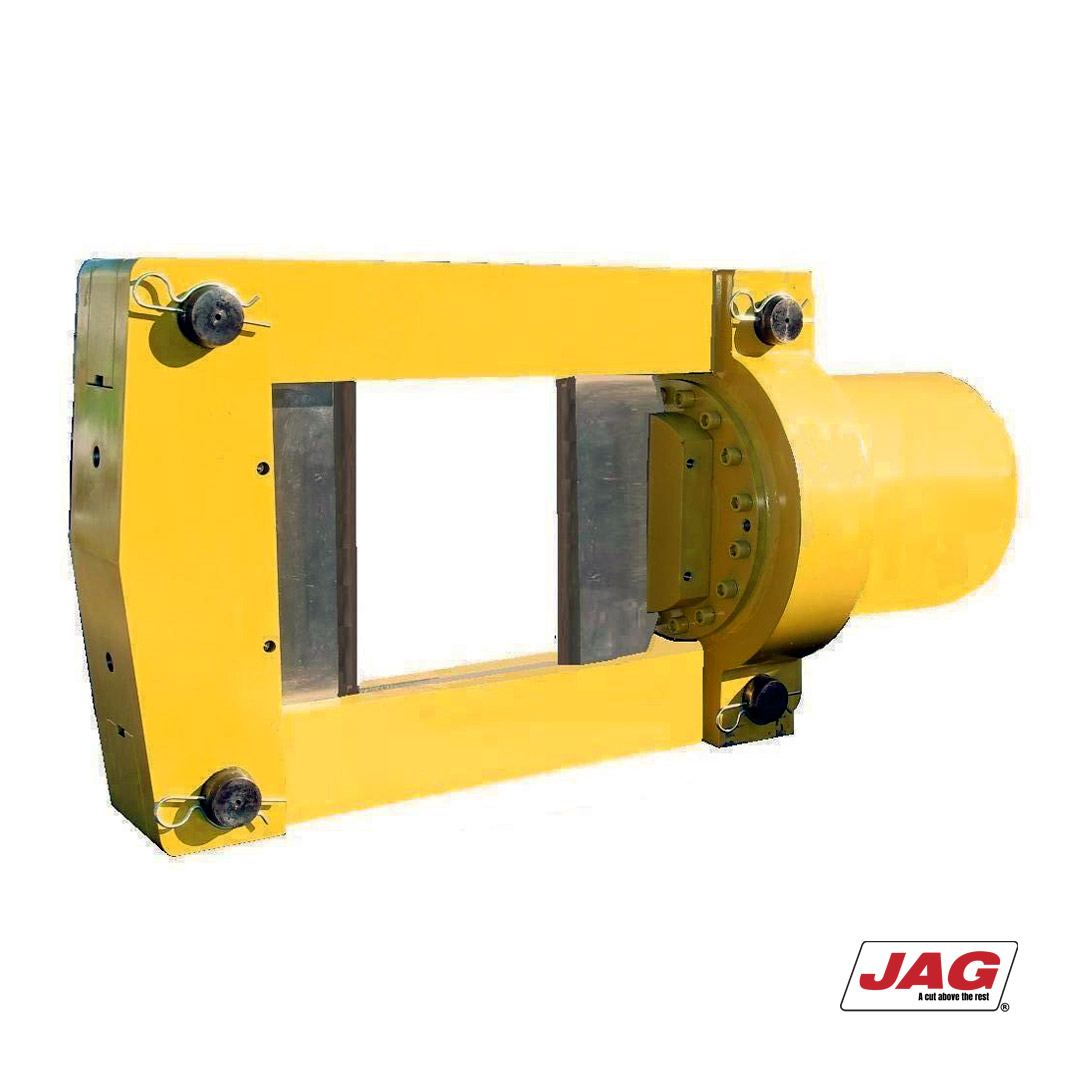

JAG HGC Series structual section cutters

JAG HGC Series Hydraulic Guillotine Cutters are designed for remote cutting operations with double acting cylinders and a straight edged double-bladed cutting system to maximise the cutting force to cut structural sections, this model will also cut fibre ropes, power cables, hose lines, telecom cables and umbilical cables.

The cutting equipment is designed with a built in 4:1 safety factor and a maximum working pressure of 10,000 PSI. They are manufactured, inspected and tested in accordance with the relevant requirements of the recognised technical standards: EN -ISO – Hydraulic fluid power for safety requirements of systems / components. EN – ISO – Safety of machinery for design/risk assessment/risk reduction and are certified accordingly. They conform with the relevant essential health and safety requirements as laid down in the machinery directive, pressure equipment directive and are CE marked accordingly.

The cutting equipment has a proven track record within:

  • Construction and Demolition / Mining / Recycling
  • Offshore Sub-sea Engineering / Oil / Gas Production, Exploration and Decommissioning
  • Nuclear Power Generation and Decommissioning

JAG HGC Series Hydraulic Guillotine Cutters are high performance, reliable and robust production equipment, and offer a no nonsense ready to operate production package when combined with the auxiliary equipment solutions from leading brands such as Holmatro, Enerpac, Hydac, Tuf and Hi-Force to give the ultimate cutting package.

JAG HGC Series structual section cutters - Specification

  • Smooth guillotine action reduces risk of jamming
  • Minimum operator effort when using powered pump
  • Double acting operation
  • Safe and easy to operate
  • All models fitted with lifting eyes
  • No set up time required
  • All models fitted with high flow couplers
  • Easily replaceable blades
  • Cutter suitable for remote operation
  • Manufactured in UK

Selection chart:

ModelOutput (tons)Weight (kgs)Dims (mm)
JAG HGC 1006070L=715 W=150 H=260
JAG HGC 150120190L=864 W=190 H=335
JAG HGC 200180300L=1020 W=220 H=420
JAG SPHGC 250320850L=1300 W=440 H=650
JAG SPHGC 3005001200L=1570 W=570 H=800

Cutting performance:

ModelMaximum structural section cutting capacity (mm) for all structural section type
JAG HGC 100100
JAG HGC 150150
JAG HGC 200200
JAG SPHGC 250250
JAG SPHGC 300300
