Pipe cutters

Hydraulic pipe cutters built for industry

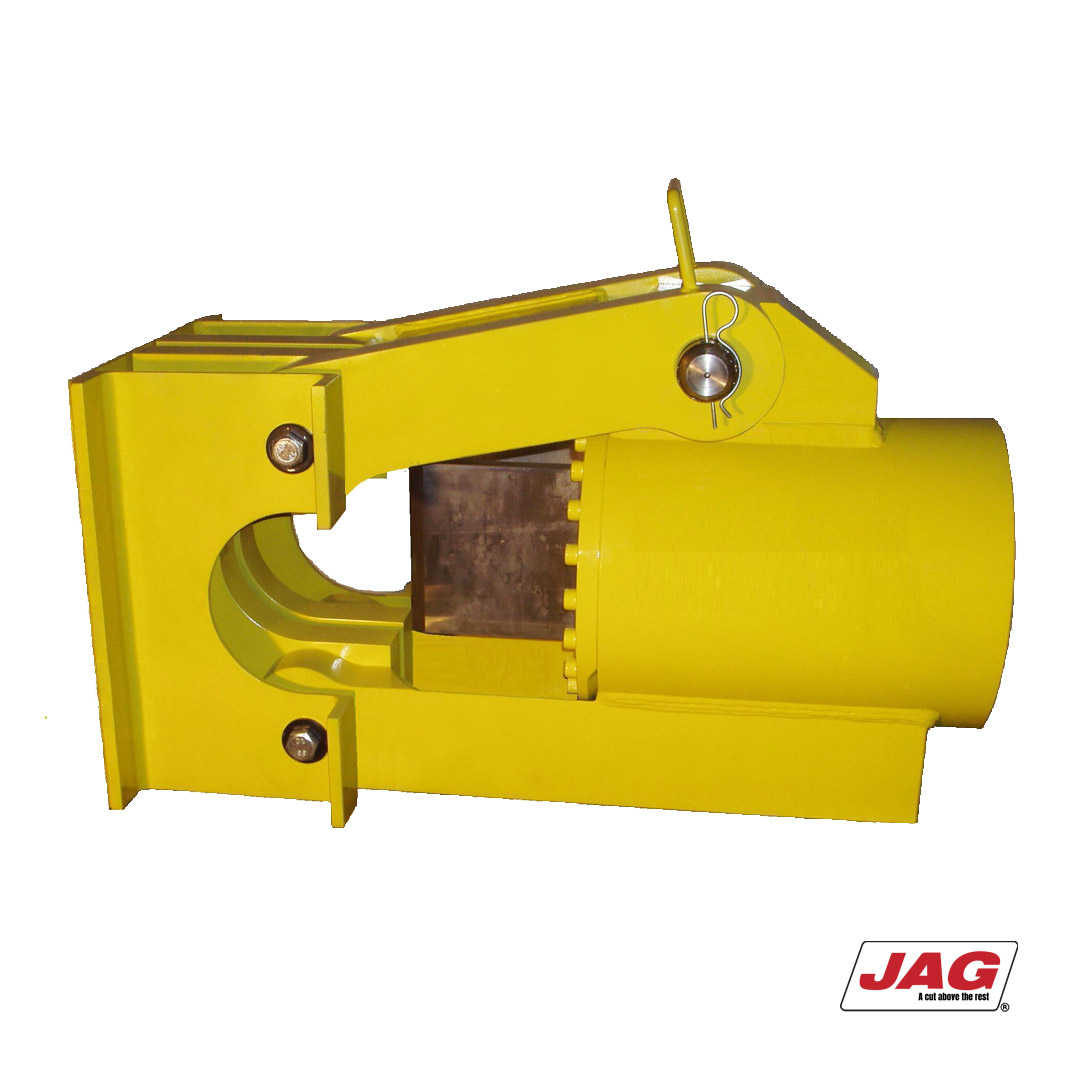

JAG HCU Series Pipe cutters

JAG HCU Series hydraulic cutter units are designed for remote cutting operations with double acting cylinders and a concaved edged single blade cutting system to ensure a clean and full cut of the toughest pipes, this model will also cut fibre ropes, power cables, hose lines, telecom cables, umbilical cables, wire ropes and rebars.

The cutting equipment is designed with a built in 4:1 safety factor and a maximum working pressure of 10,000 PSI.

They are manufactured, inspected and tested in accordance with the relevant requirements of the recognised technical standards: EN -ISO – Hydraulic fluid power for safety requirements of systems / components. EN – ISO – Safety of machinery for design/risk assessment/risk reduction and are certified accordingly. They conform with the relevant essential health and safety requirements as laid down in the machinery directive, pressure equipment directive and are CE marked accordingly.

The cutting equipment has a proven track record within:

  • Manufacturing / Mining / Recycling / Construction and Demolition
  • Offshore Sub-sea Engineering / Oil / Gas production, exploration and decommissioning
  • Nuclear Power Generation and Decommissioning

JAG HCU Series hydraulic cutter units are high performance, reliable and robust production equipment, and offer a no nonsense ready to operate production package when combined with the auxiliary equipment solutions from leading brands such as Holmatro, Enerpac, Hydac, Tuf and Hi-Force to give the ultimate cutting package.

JAG HCU Series pipe cutters - Specification:

  • Smooth guillotine action reduces risk of jamming
  • Minimum operator effort when using powered pump
  • Double acting operation
  • Safe and easy to operate
  • All models cut a wide variety of materials
  • No set up time required
  • All models fitted with high flow couplers
  • Easily replaceable blades
  • Cutter suitable for remote operation
  • Manufactured in UK

Selection chart:

ModelOutput (tons)Weight (kgs)Dims (mm)
JAG HCU 383630L=400 W=155 H=270
JAG HCU 638070L=450 W=200 H=390
JAG HCU 908080L=515 W=200 H=390
JAG HCU 114120140L=570 W=280 H=445
JAG SPHCU 150220460L=900 W=420 H=570
JAG SPHCU 200400880L=1100 W=540 H=780

Cutting performance:

ModelMaximum pipe cutting capacity (mm) All pipe grade
JAG HCU 3838
JAG HCU 6363
JAG HCU 9090
JAG HCU 114114
JAG SPHCU 150150
JAG SPHCU 200200
