Cable cutters
Hydraulic cable cutters built for industry

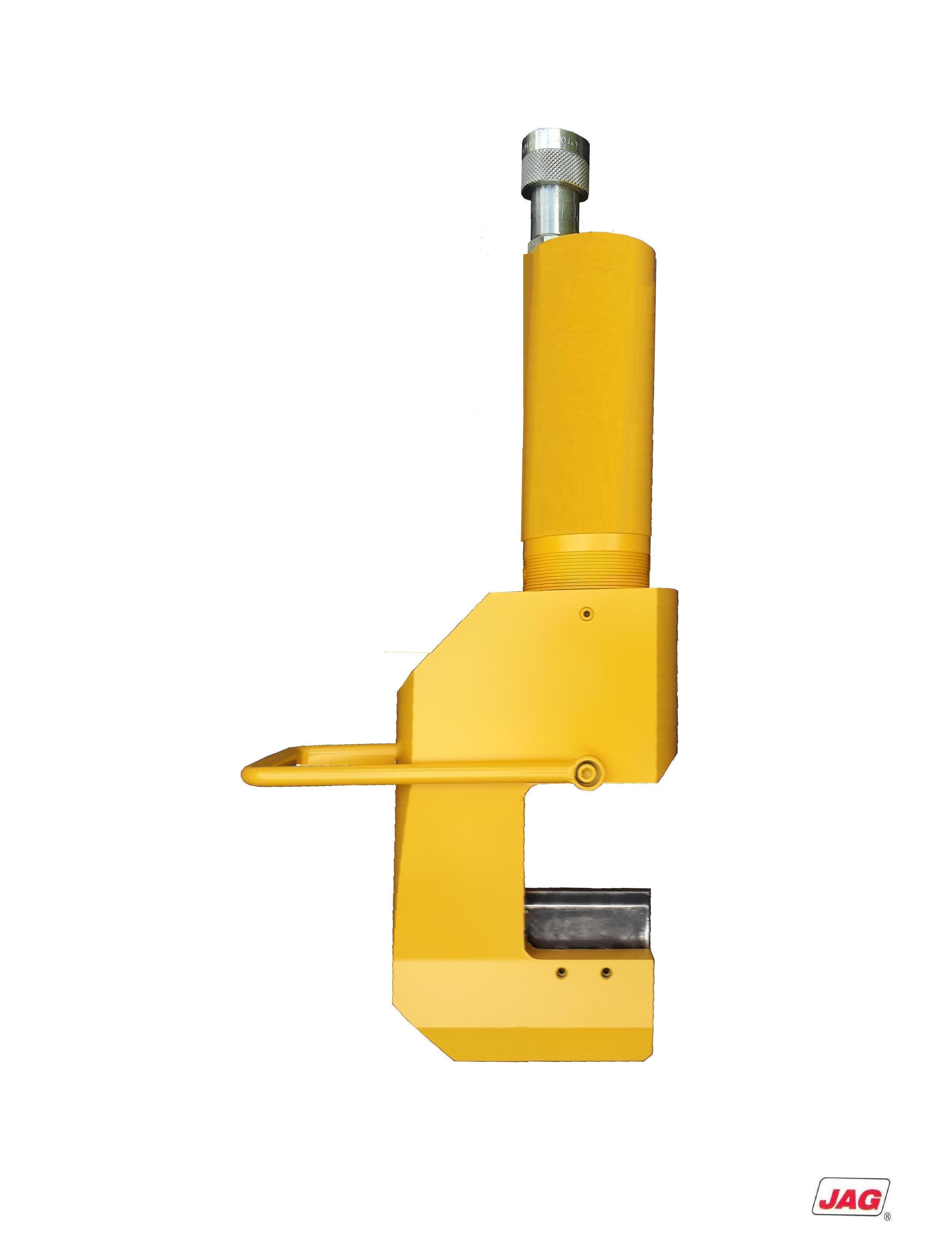

JAG XLT Series cable cutters
JAG XLT Series Hydraulic Cutter Heads are designed as Emergency disconnection/ release cutters with double acting cylinders for reliable operation. The straight edged double-bladed cutting system helps to maximise the power to weight ratio for cutting fibre ropes, power cables, hose lines and telecom cables.
The cutting equipment is designed with a built in 4:1 safety factor and a maximum working pressure of 10,000 PSI. They are manufactured, inspected and tested in accordance with the relevant requirements of the recognised technical standards: EN -ISO – Hydraulic fluid power for safety requirements of systems / components. EN – ISO – Safety of machinery for design/risk assessment/risk reduction and are certified accordingly. They conform with the relevant essential health and safety requirements as laid down in the machinery directive, pressure equipment directive and are CE marked accordingly.
The cutting equipment has a proven track record within the following industries:
- Oil/ Gas exploration and decommissioning
- Offshore Sub-sea Engineering
- Shipping
- Rescue/Salvage
The cutting equipment has been used as an Emergency Disconnect/Release mechanism in the following areas:
- Decommissioning
- Mooring
- Anchoring
- Towing
- Lifting
- Winching
- Installation
- Maintenance
JAG XLT Series Hydraulic Cutter Heads are high performance, reliable and robust production equipment and offers no nonsense ready to operate production package when combined with the auxiliary equipment solutions from leading brands such as Holmatro, Enerpac, Hydac, Tuf and Hi-Force to give the ultimate cutting package.
JAG XLT Series cable cutters - Specification:
- Smooth guillotine action reduces risk of jamming
- Minimum operator effort when using powered pump
- Lightweight tools permit use anywhere
- Safe and easy to operate
- No set up time required
- All models fitted with high flow couplers
- Suitable for remote operation
- Easily replaceable blades
- Double acting operation
- Manufactured in UK
Selection chart:
| Model | Output (tons) | Weight (kgs) | Dims (mm) |
|---|---|---|---|
| JAG XLT 8 | 8 | 16 | L=528 W=110 H=166 |
| JAG XLT 15 | 15 | 31 | L=593 W=130 H=235 |
| JAG XLT 23 | 23 | 59 | L=711 W=142 H=252 |
| JAG XLT 30 | 30 | 103 | L=730 W=159 H=30 |
Cutting performance:
| Model | Maximum cable cutting capacity (mm) All cable type |
|---|---|
| JAG XLT 8 | 40 |
| JAG XLT 15 | 75 |
| JAG XLT 23 | 115 |
| JAG XLT 30 | 150 |

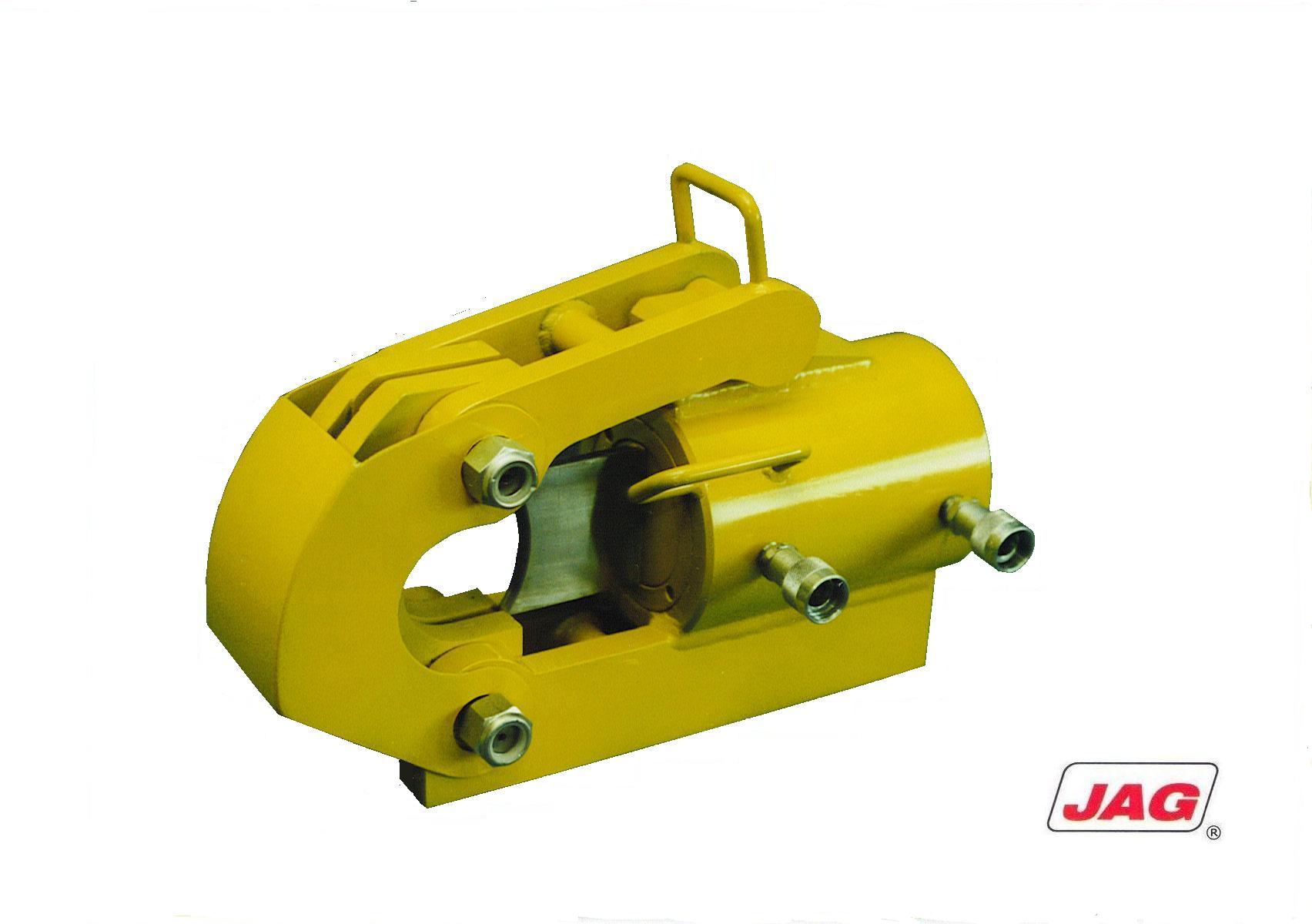

JAG HCU Series cable cutters
JAG HCU series hydraulic cutter units are designed for remote cutting operations with double acting cylinders and a concaved edged single blade cutting system to ensure a clean and full cut of the finest and toughest fibre ropes, power cables, hose lines, telecom cables and umbilical cables, this model can also cut wire ropes, rebars and tubes.
The cutting equipment is designed with a built in 4:1 safety factor and a maximum working pressure of 10,000 PSI.
They are manufactured, inspected and tested in accordance with the relevant requirements of the recognised technical standards: EN -ISO – Hydraulic fluid power for safety requirements of systems / components. EN – ISO – Safety of machinery for design/risk assessment/risk reduction and are certified accordingly. They conform with the relevant essential health and safety requirements as laid down in the machinery directive, pressure equipment directive and are CE marked accordingly.
The cutting equipment has a proven track record within:
- Manufacturing / Mining / Recycling / Construction and Demolition
- Offshore Sub-sea Engineering / Oil / Gas production, exploration and decommissioning
- Nuclear Power Generation and Decommissioning
JAG HCU series hydraulic cutter units are high performance, reliable and robust production equipment, and offer a no nonsense ready to operate production package when combined with the auxiliary equipment solutions from leading brands such as Holmatro, Enerpac, Hydac, Tuf and Hi-Force to give the ultimate cutting package.
JAG HCU Series cable cutters - Specification:
- Smooth guillotine action reduces risk of jamming
- Minimum operator effort when using powered pump
- Double acting operation
- Safe and easy to operate
- All models cut a wide variety of materials
- No set up time required
- All models fitted with high flow couplers
- Easily replaceable blades
- Cutter suitable for remote operation
- Manufactured in UK
Selection chart:
| Model | Output (tons) | Weight (kgs) | Dims (mm) |
|---|---|---|---|
| JAG HCU 38 | 36 | 30 | L=400 W=155 H=270 |
| JAG HCU 63 | 80 | 70 | L=450 W=200 H=390 |
| JAG HCU 90 | 80 | 80 | L=515 W=200 H=390 |
| JAG HCU 114 | 120 | 140 | L=570 W=280 H=445 |
| JAG SPHCU 150 | 220 | 460 | L=900 W=420 H=570 |
| JAG SPHCU 200 | 400 | 880 | L=1100 W=540 H=780 |
Cutting performance:
| Model | Maximum cable cutting capacity (mm) All cable type |
|---|---|
| JAG HCU 38 | 38 |
| JAG HCU 63 | 63 |
| JAG HCU 90 | 90 |
| JAG HCU 114 | 114 |
| JAG SPHCU 150 | 150 |
| JAG SPHCU 200 | 200 |

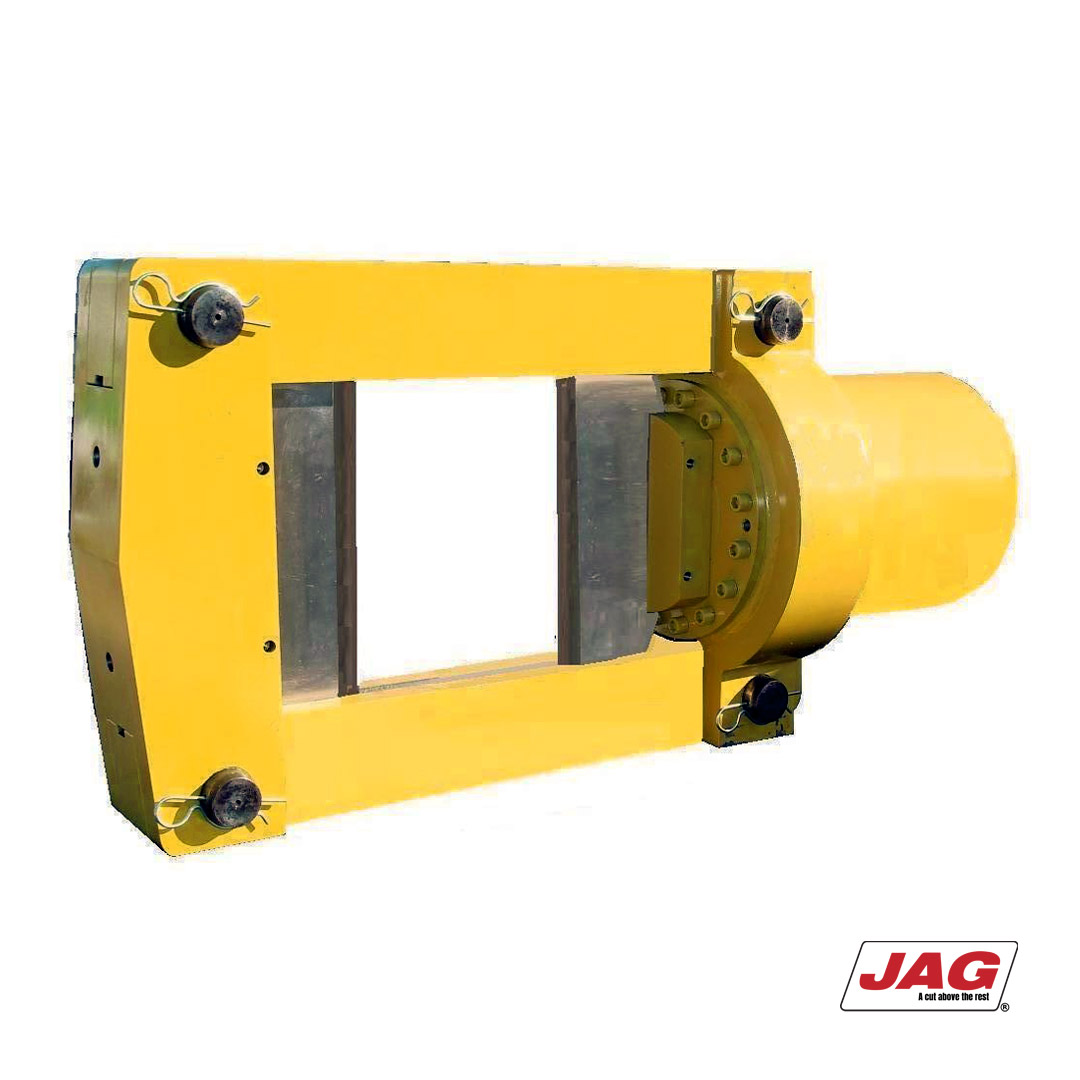

JAG HGC Series cable cutters
JAG HGC Series Hydraulic Guillotine Cutters are designed for remote cutting operations with double acting cylinders and a straight edged double-bladed cutting system to maximise the cutting force to cut fibre ropes, power cables, hose lines, telecom cables and umbilical cables, this model can also cut structual sections.
The cutting equipment is designed with a built in 4:1 safety factor and a maximum working pressure of 10,000 PSI.
They are manufactured, inspected and tested in accordance with the relevant requirements of the recognised technical standards: EN -ISO – Hydraulic fluid power for safety requirements of systems / components. EN – ISO – Safety of machinery for design/risk assessment/risk reduction and are certified accordingly. They conform with the relevant essential health and safety requirements as laid down in the machinery directive, pressure equipment directive and are CE marked accordingly.
The cutting equipment has a proven track record within:
- Construction and Demolition / Mining / Recycling
- Offshore Sub-sea Engineering / Oil / Gas Production, Exploration and Decommissioning
- Nuclear Power Generation and Decommissioning
JAG HGC Series Hydraulic Guillotine Cutters are high performance, reliable and robust production equipment, and offer a no nonsense ready to operate production package when combined with the auxiliary equipment solutions from leading brands such as Holmatro, Enerpac, Hydac, Tuf and Hi-Force to give the ultimate cutting package.
JAG HGC Series cable cutters - Specification:
- Smooth guillotine action reduces risk of jamming
- Minimum operator effort when using powered pump
- Double acting operation
- Safe and easy to operate
- All models fitted with lifting eyes
- No set up time required
- All models fitted with high flow couplers
- Easily replaceable blades
- Cutter suitable for remote operation
- Manufactured in UK
Selection chart:
| Model | Output (tons) | Weight (kgs) | Dims (mm) |
|---|---|---|---|
| JAG HGC 100 | 60 | 70 | L=715 W=150 H=260 |
| JAG HGC 150 | 120 | 190 | L=864 W=190 H=335 |
| JAG HGC 200 | 180 | 300 | L=1020 W=220 H=420 |
| JAG SPHGC 250 | 320 | 850 | L=1300 W=440 H=650 |
| JAG SPHGC 300 | 500 | 1200 | L=1570 W=570 H=800 |
Cutting performance:
| Model | Maximum cable cutting capacity (mm) All cable type |
|---|---|
| JAG HGC 100 | 100 |
| JAG HGC 150 | 150 |
| JAG HGC 200 | 200 |
| JAG SPHGC 250 | 250 |
| JAG SPHGC 300 | 300 |
